Base Plate for Scaffolding Props

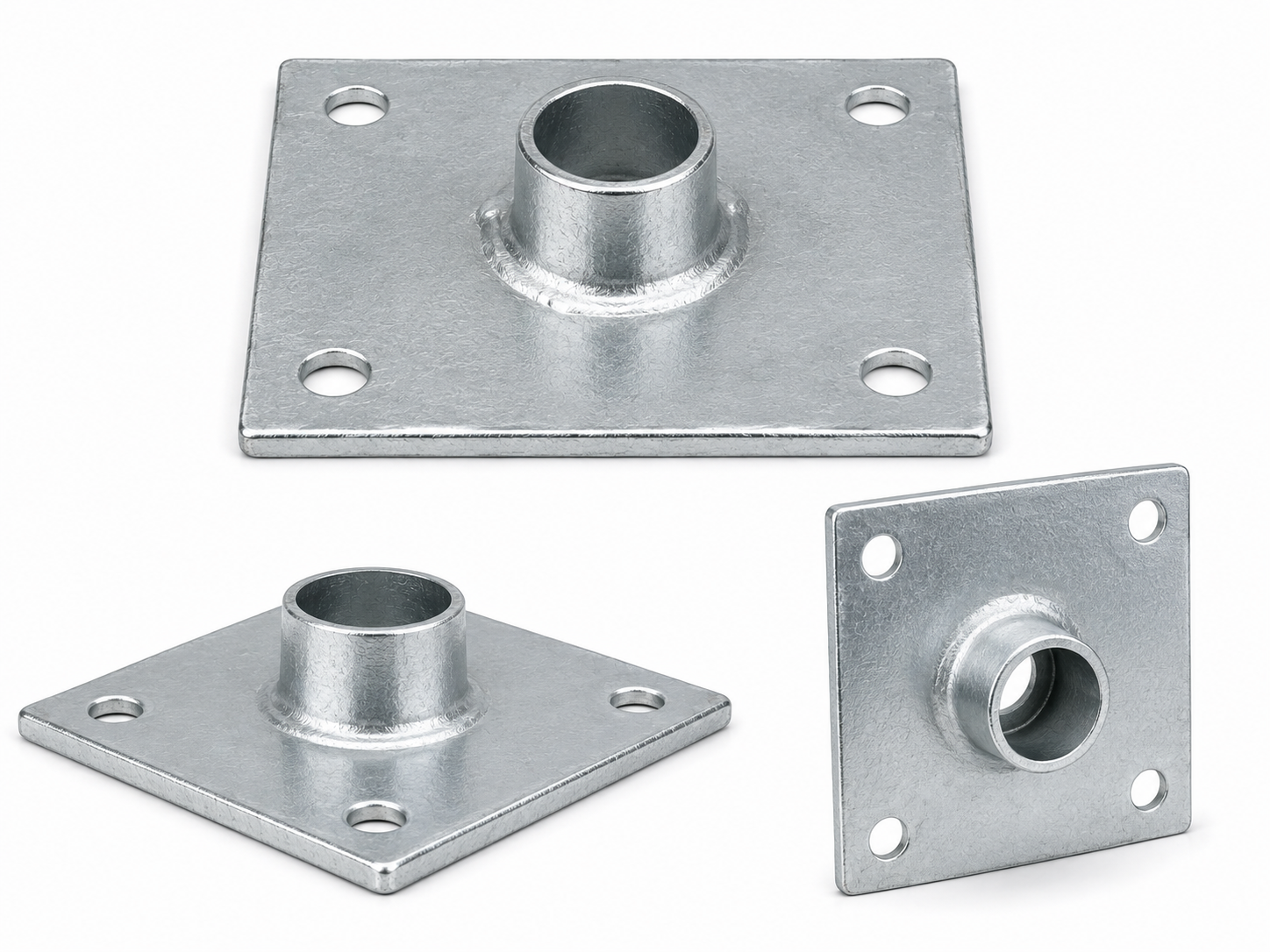

A Base Plate is a flat steel plate welded to the bottom of scaffolding props, jacks, or standards, designed to provide a stable foundation and distribute the load evenly to the ground. It prevents the props from sinking into soft surfaces and ensures safety, balance, and rigidity of the scaffolding structure.
NOVSA manufactures Base Plates using high-strength steel, available in different sizes, thicknesses, and finishes to suit various project needs.

NOVSA Base Plates

  • Manufactured from premium-grade mild steel / carbon steel.
  • Standard plate sizes: 120 × 120 mm, 150 × 150 mm, 160 × 160 mm (custom sizes available).
  • Thickness: 5 mm – 8 mm (depending on load requirement).
  • Central hole: 38 mm – 50 mm to suit scaffolding props & standards.
  • Surface Finish: Hot-Dip Galvanized, Zinc-Plated, or Painted.
  • Complies with BS 1139 & EN 74 standards.

Base Plate – Size & Weight Chart



Plate Size (mm)

Thickness (mm)

Hole Diameter (mm)

Approx. Weight (kg)

120 × 120

5

38 – 48

1.2 – 1.5

120 × 120

6

38 – 48

1.5 – 1.8

150 × 150

5

38 – 48

1.8– 2.2

150 × 150

6

38 – 48

2.2 – 2.6

160 × 160

6

38 – 50

2.6 – 3.0

160 × 160

8

38 – 50

3.2 – 3.8

Surface Finish for NOVSA Base Plate

Finish Type

Description

Advantage

Electro-Galvanized (EG)

Thin zinc coating applied by electroplating.

Smooth finish, cost-effective, suitable for indoor or short-term use.

Hot-Dip Galvanized (HDG)

Thick zinc layer coating applied by dipping in molten zinc.

Superior corrosion resistance, best for outdoor & long-term projects.

Powder Coated / Painted

Protective paint coating available in various colours.

Economical, aesthetic appeal, medium protection.

Self-Colour (Black Steel)

Natural steel finish without coating.

Budget-friendly, suitable for temporary works.

Standards for NOVSA Base Plate

Standard

Description

BS 1139

British Standard for scaffolding tubes, fittings & base plates, ensuring structural safety.

EN 74

European Standard for forged fittings, base plates, and couplers used in scaffolding systems.

EN 12811

Specifies performance requirements and load testing for scaffolding components.

Material Grades for NOVSA Base Plate

NOVSA manufactures Base Plates using high-quality steel grades to ensure strength, load-bearing capacity, and durability under heavy construction conditions.
Grade

Standard

Properties

Mild Steel (IS 2062 E250/E275)

Indian / International Standard

Good weld ability, cost-effective, suitable for general scaffolding use.

Carbon Steel (S235JR / S275JR / S355JR)

EN 10025 (European Standard)

Higher strength, better toughness, widely used for heavy-duty scaffolding.

Alloy Steel (Optional – customized)

American Standard (ASTM)

Excellent structural strength, widely used in global projects.
