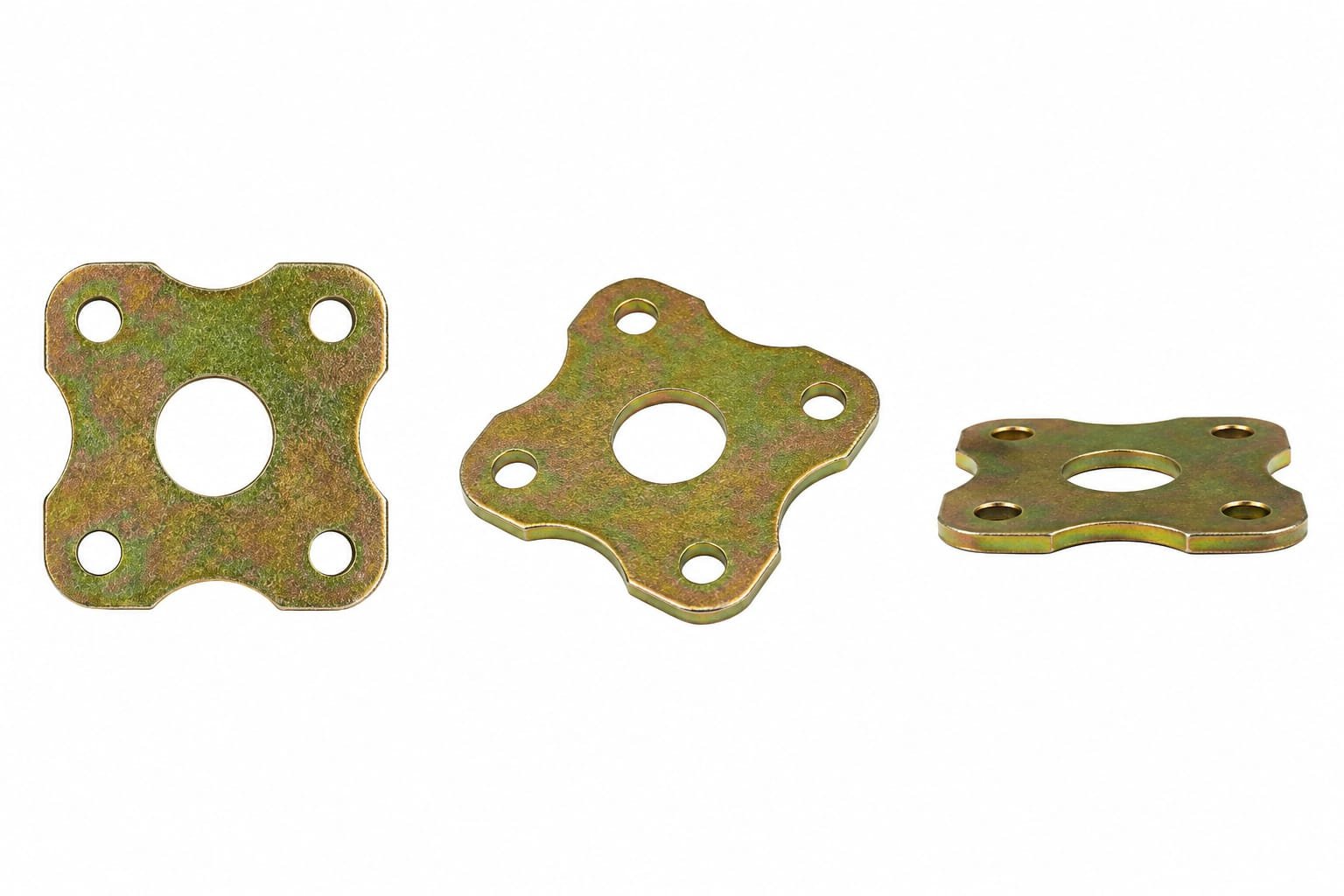

Flower Plate Scaffolding Plate

A Flower Plate is a specially designed base plate with pressed stiffeners (flower-shaped ribs) for additional strength and load distribution.
It is used at the bottom of scaffolding props, jacks, and standards to provide extra stability on soft or uneven ground.

NOVSA manufactures Flower Plates from premium-grade steel with high precision, ensuring durability, anti-slip grip, and enhanced load-bearing capacity.

NOVSA Flower Plate

  • Made from Mild Steel / Carbon Steel as per IS 2062 / EN 10025.
  • Standard Sizes: 120 × 120 mm, 150 × 150 mm, 160 × 160 mm.
  • Thickness: 5 mm – 8 mm (custom available).
  • Central Whole Diameter: 38 mm – 50 mm.
  • Surface Finish: Hot-Dip Galvanized, Zinc-Plated, Painted, or Self-Colour.
  • Extra pressed ribs (flower design) for load distribution & anti-slip effect.
    Conforms to BS 1139 & EN 74 standards.

Flower Plate – Size & Weight Chart



Plate Size (mm)

Thickness (mm)

Hole Diameter (mm)

Approx. Weight (kg)

120 × 120

5

38 – 48

1.3 – 1.6

120 × 120

6

38 – 48

1.6 – 1.9

150 × 150

5

38 – 48

1.9 – 2.3

150 × 150

6

38 – 48

2.3 – 2.7

160 × 160

6

38 – 50

2.7 – 3.2

160 × 160

8

38 – 50

3.4 – 4.0
Available in Hot-Dip Galvanized, Zinc-Plated, Painted, or Self-Colour finishes.

Surface Finish for NOVSA Flower Plate

Finish Type

Description

Advantage

Electro-Galvanized (EG)

Thin zinc coating applied via electroplating.

Smooth finish, economical, suitable for light-duty works.

Hot-Dip Galvanized (HDG)

Thick zinc coating applied by dipping in molten zinc.

Maximum corrosion resistance, ideal for outdoor & long-term use.

Powder Coated / Painted

Painted or powder-coated surface available in different colours.

Medium protection, good aesthetics, cost-effective.

Self-Colour (Black Steel)

Supplied without coating in natural steel finish.

Budget-friendly, suitable for short-term/temporary works.
All NOVSA Flower Plates are manufactured as per BS 1139 & EN 74 standards, ensuring strength, safety, and global acceptance.

Standards for NOVSA Flower Plate

Standard

Description

BS 1139

British Standard for scaffolding tubes, fittings & base plates, covering design & safety.

EN 74

European Standard for forged fittings, base plates, and couplers used in scaffolding systems.

EN 12811

Defines performance requirements & structural testing for scaffolding components.
Each NOVSA Flower Plate undergoes load-bearing tests, dimensional checks, and weld inspections before delivery.

Material Grades for NOVSA Flower Plate

Grade

Standard

Properties

Mild Steel (IS 2062 E250/E275)

Indian / International Standard

Good weld ability, economical, suitable for general scaffolding applications.

Carbon Steel (S235JR / S275JR / S355JR)

EN 10025 (European Standard)

Higher strength, excellent toughness, preferred for heavy-duty scaffolding.

Alloy Steel (Optional – customized)

American Standard (ASTM)

High structural strength, globally accepted in construction projects.
