Forged Clamp – Heavy-Duty Scaffolding Solution

NOVSA manufacture and supply high-quality Forged Clamps engineered for maximum strength and durability. Produced using the drop-forging process, our clamps are built to withstand heavy loads and ensure safety in demanding scaffolding applications.

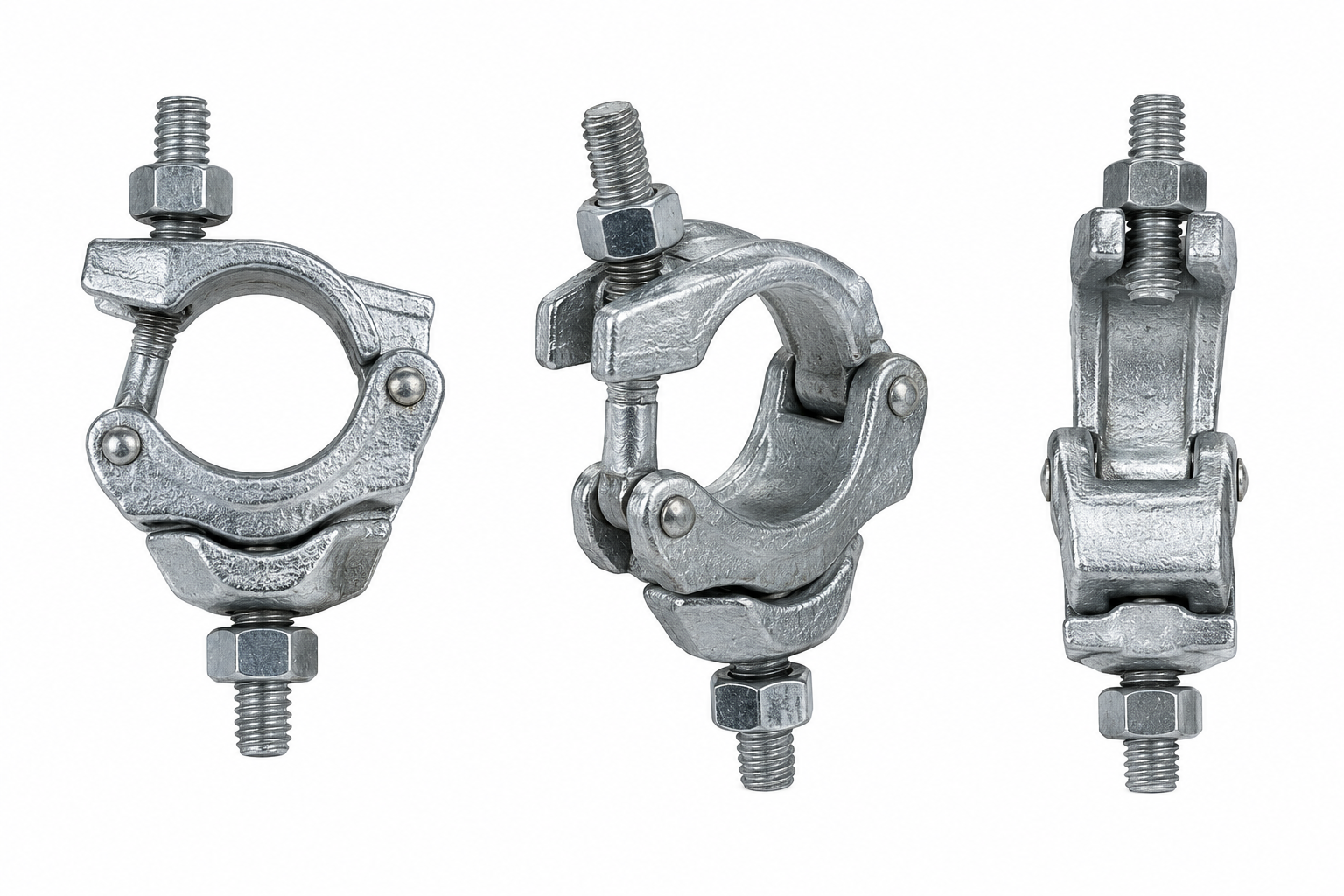

NOVSA Forged Clamps

  • Manufactured from premium-grade forged steel
  • High load-bearing capacity & superior toughness
  • Available in Zinc-Plated / Hot-Dip Galvanized finish
  • Designed for secure tube-to-tube connections
  • Conforms to BS 1139 & EN 74 standards
  • Widely used in construction, industrial scaffolding, bridges & high-rise projects

Standards for Forged Clamp

Standard

Description

BS 1139

British Standard for scaffolding couplers and fittings, widely accepted globally.

EN 74

European Standard for scaffolding couplers, specifying strength & durability.

IS Standards (Optional)

Indian Standards for material quality and scaffolding safety.
Most forged clamps are designed for 48.3 mm OD scaffold tubes, which is the global standard. Other sizes can be supplied on request.

Tube Size (OD)

Clamp Type

 Weight (Approx.)

Standard

48.3 mm

Forged Fixed Clamp

1.00 – 1.10 kg

BS 1139 / EN 74

48.3 mm × 48.3 mm

Forged Swivel Clamp

1.60 – 1.80 kg

BS 1139 / EN 74

48.3 mm × 48.3 mm

Forged Double Coupler

1.00 – 1.15 kg

BS 1139 / EN 74

48.3 mm × 48.3 mm

Forged Putlog Coupler

0.90 – 1.00 kg

BS 1139 / EN 74

60.3 mm (Optional)

Heavy Duty Forged Clamp

1.80 – 2.00 kg

Custom / EN 74

Forged Clamp – Surface Finish

NOVSA forged clamps are treated with high-quality protective finishes to enhance their corrosion resistance, durability, and service life. Depending on project requirements, we offer multiple surface finishing options for reliable performance in all environments.

Finish Type

Description

Advantage

Electro-Galvanized (EG)

Thin zinc coating applied through electroplating.

Cost-effective, good for general use.

Hot-Dip Galvanized (HDG)

Thick zinc layer applied by dipping in molten zinc.

Superior corrosion resistance, best for outdoor.

Powder Coated / Painted

Protective paint available in multiple colours.

Aesthetic look with medium protection.

Self-Colour (Black Steel)

Natural forged steel without coating.

Suitable for short-term or temporary use.

Standards for Fixed Clamp

Standard

Description

BS 1139

British Standard for scaffolding couplers and fittings, widely accepted globally.

EN 74

European Standard for scaffolding couplers, specifying strength & durability.

IS Standards (Optional)

Indian Standards for material quality and scaffolding safety.
