G Pin Scaffolding G Pin / Joint Pin

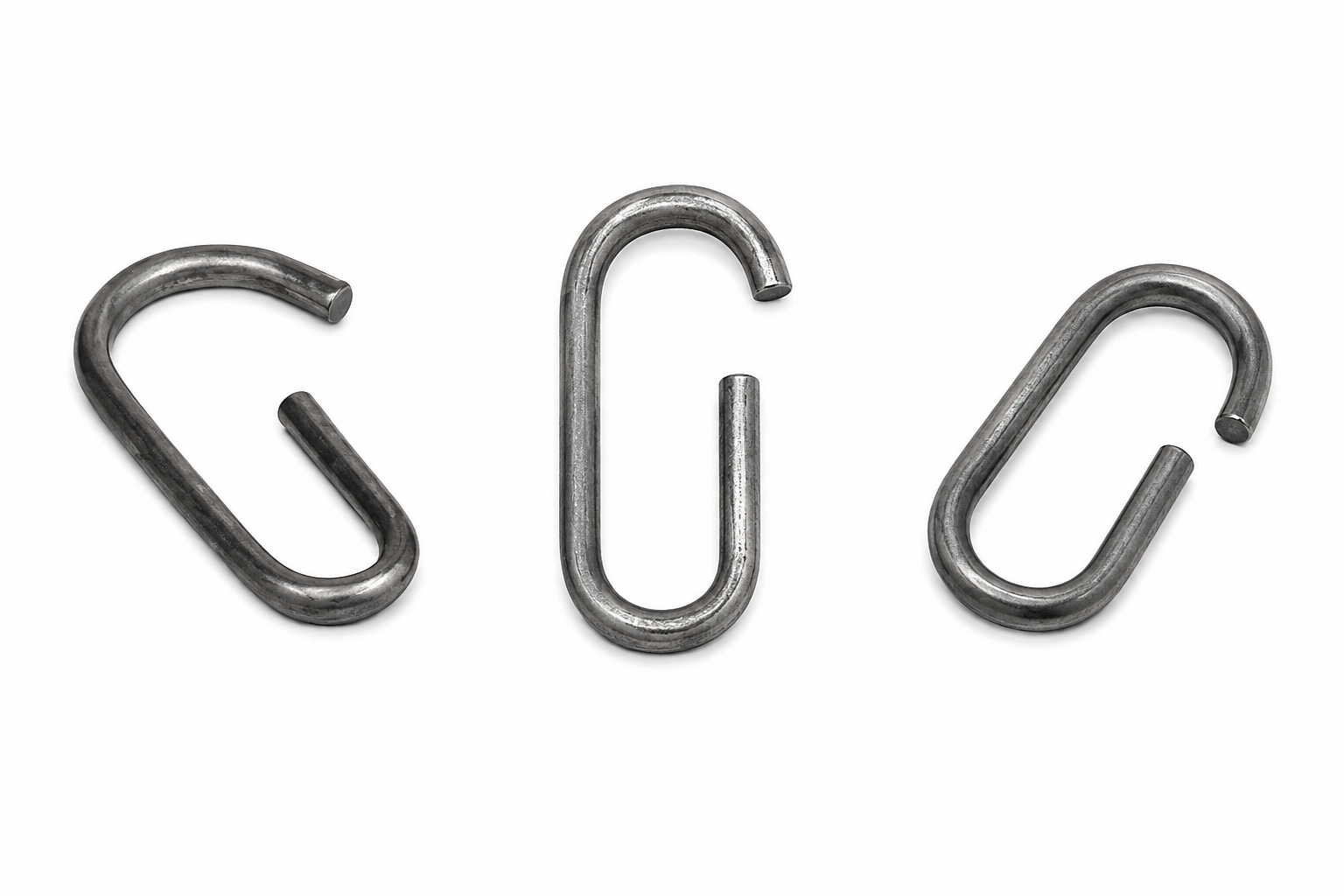

A G Pin, also called a Joint Pin or Gravity Pin, is a scaffolding accessory used to connect two scaffolding pipes or props securely. It is shaped like the letter “G”, allowing it to easily lock into place and hold the components firmly during construction.
NOVSA manufactures G Pins using high-strength steel with precise dimensions, ensuring durability, safety, and easy installation at construction sites.

NOVSA G Pin – Size & Weight Chart

Pin Diameter (mm)

Length (mm)

Approx. Weight (kg/pc)

Usage

12 mm

50 – 75

0.08 – 0.12

Light-duty scaffolding connections

14 mm

65 – 85

0.12 – 0.16

Standard scaffolding pipes & props

16 mm

75 – 100

0.18 – 0.25

Heavy-duty scaffolding applications

Material Grades for NOVSA G Pin

Grade

Standard

Properties

Mild Steel (IS 2062 E250/E275)

Indian / International Standard

Good weld ability, economical, suitable for standard scaffolding joints.

Carbon Steel (S235JR / S275JR / S355JR)

EN 10025 (European Standard)

Higher strength, durable, ideal for heavy-duty scaffolding.

Alloy Steel (Optional – customized)

ASTM / EN Standards

Extra hardness & toughness for special applications.
  • NOVSA G Pins are generally produced in 12 mm, 14 mm, and 16 mm diameters using Mild Steel / Carbon Steel depending on customer requirements.
  • All materials undergo tensile strength, hardness, and impact resistance tests before approval.

Standards for NOVSA G Pin

All NOVSA G Pins are designed and tested according to international scaffolding standards, ensuring safety, strength, and compatibility with scaffolding systems worldwide.

Standard

Description

BS 1139

British Standard for scaffolding fittings & accessories, covering quality and safety.

EN 74

European Standard for couplers, joint pins, and connectors used in scaffolding.

EN 12811

Specifies performance requirements & load testing for temporary works equipment like scaffolding.
  • Every NOVSA G Pin is tested for shear strength, dimensional accuracy, and durability before dispatch.
  • Compliance with these standards ensures safe connections and global acceptance in construction projects.

Surface Finish for NOVSA G Pin

To ensure long life, corrosion resistance, and smooth operation, NOVSA provides multiple surface finish options for G Pins based on site and project requirements.

Finish Type

Description

Advantage

Electro-Galvanized (EG)

Thin zinc coating applied via electroplating.

Smooth finish, economical, good for standard use.

Hot-Dip Galvanized (HDG)

Thick zinc coating applied by dipping in molten zinc.

Maximum corrosion resistance, ideal for outdoor & long-term use.

Powder Coated / Painted

Protective paint layer available in multiple colours.

Aesthetic look, medium protection, cost-effective.

Self-Colour (Black Steel)

Supplied in natural steel without coating.

Budget-friendly, suitable for temporary/indoor works.
