About CWARO scaffolding
CWARO scaffolding materials are made up of high quality steel, with engineered technologies and skilled technicians. Our scaffolding manufacturing including protective coatings to withstand in marine applications, seashore construction and in all weather conditions, We manufacture GI scaffolding, epoxy painted, enamel painted, powder Coated, Stainless steel scaffolding, Eco-friendly hot dip galvanized scaffoldings, aluminum scaffolding and also customization in size, logo marking, colors etc.

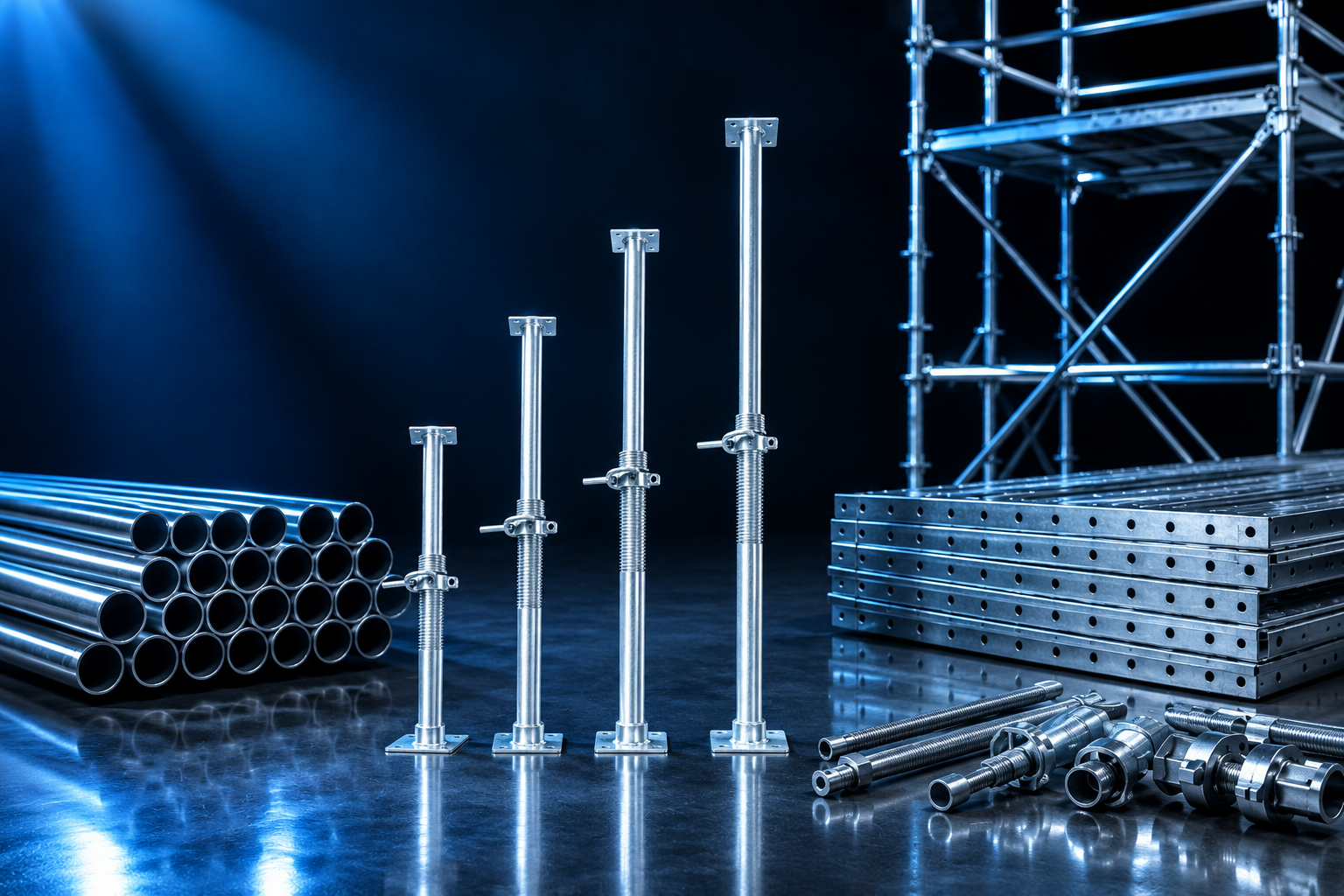

Our Scaffolding material name list
Adjustable Scaffolding Props Jack
Scaffolding Clamp – Swivel clamp, fixed clamp, Forged clamp
Scaffolding Pipes – GI Pipes, Painted Pipes, GI Eco star Pipe
Scaffolding prop accessories – Prop sleeve, Base plate, flower plate, g pin, prop nut
Scaffolding accessories – Tie rod, Wing nut, Joint Pin, Double U bolt or S bolt
Scaffolding Ledgers – Vertical, Horizontal Ledgers
Scaffolding Ledgers – Vertical, Horizontal Ledgers
Our Manufacturing process of scaffolding accessories
|
Standard Code |
T Scope |
Key Coverage |
|
BS 1139 (multiple parts) |
Metal scaffolding, tubes, couplers, and fittin |
Dimensions, load tests, slip resistance, corrosion protection |
|
EN 74 (Parts 1–3) |
Couplers, spigot pins, and base plate |
Strength requirements, slip tests, rotation, torque |
|
EN 12810 / EN 12811 |
Façade scaffolds and temporary works equipment |
Structural design, materials, testing |
|
AS/NZS 1576 |
Scaffolding |
General requirements for Australian/NZ markets |
|
OSHA 29 CFR 1926.451 |
US scaffolding safety |
Design load, materials, and assembly rules |
|
IS 3696 (Part 1 & 2) |
Indian scaffolds safety code |
Design and use requirements |
|
IS 2750 |
Steel scaffold tubes |
Dimensions, tolerances, materials |
Raw Material
- Tubes: ERW steel conforming to IS 1161, EN 10219, or BS EN 39
- Couplers: Forged steel (per EN 74) or drop-forged/pressed steel plates
- Threaded Parts: Carbon steel grades like C45, EN8, or equivalent
- Surface Finish: Hot-dip galvanizing per IS 4759 / ISO 1461 or zinc electroplating per IS 1573
Welding
Use electrodes conforming to AWS A5.1 E6013 or E7018 depending on load requirement
Weld inspection as per ISO 5817 (acceptable quality levels)
|
Test |
Standard Reference |
Purpose |
|
Tensile & yield |
EN 10002-1, IS 1608 |
Material strength |
|
Slip resistance |
BS 1139-2.1 |
Coupler slip strength |
|
Bending test |
EN 74 |
Tube and coupler durability |
|
Load test |
EN 12811-3 |
Axial load & bending |
|
Galvanizing thickness |
ISO 1461 / IS 3203 |
Coating quality |
Our Factory
