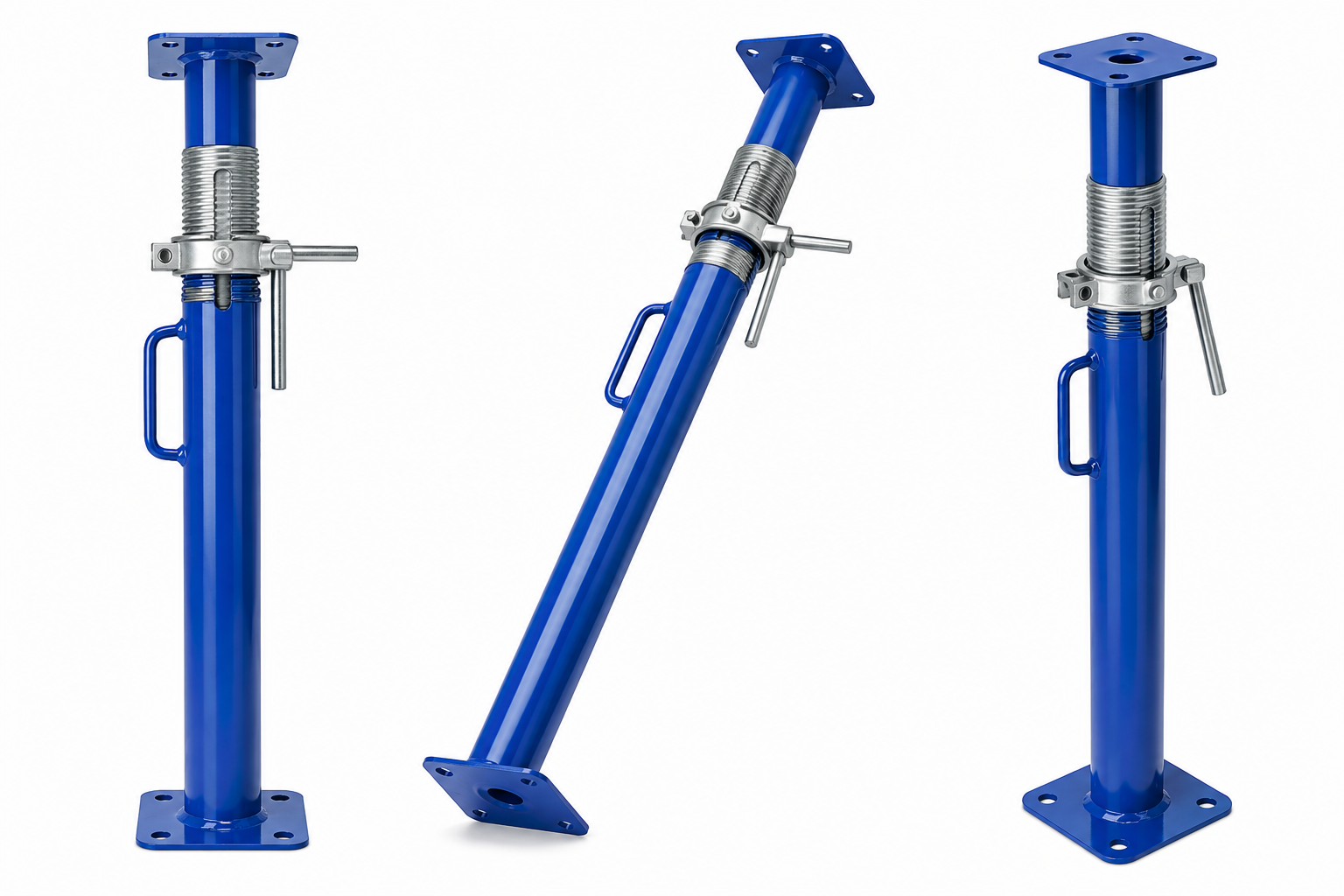

Scaffolding Adjustable Prop Jack -Medium

NOVSA manufactures Scaffolding Adjustable Prop Jacks designed for safe vertical load support in slab and beam construction. Engineered from high-grade steel tubes and available in hot-dip galvanized or painted finish, our adjustable props meet BS 1139 & EN 1065 standards for global use.

Our adjustable steel props are manufactured using premium-grade steel tubes and heavy-duty threaded collars for precise height adjustment. We offer multiple finishes, including hot-dip galvanizing for superior rust resistance. These props are ideal for slab, beam, and formwork support in commercial, residential, and industrial projects.

Standard Code

Scope

Key Coverage

BS 1139 (multiple parts)

Metal scaffolding, tubes, couplers, and fittings

Dimensions, load tests, slip resistance, corrosion protection

EN 74 (Parts 1–3)

Couplers, spigot pins, and base plate

Strength requirements, slip tests, rotation, torque

EN 12810 / EN 12811

Façade scaffolds and temporary works equipment

Structural design, materials, testing

AS/NZS 1576

Scaffolding

General requirements for Australian/NZ markets

OSHA 29 CFR 1926.451

US scaffolding safety

Design load, materials, and assembly rules

IS 3696 (Part 1 & 2)

Indian scaffolds safety code

Design and use requirements

IS 2750

Steel scaffold tubes

Dimensions, tolerances, materials

Model / Product ID

CWARO-315

Classification

Light Duty Prop jack

Product Standard

BS EN 1065

Open Height

1750mtr.

Closing Height

3000mtr. To 4 meter

Outer Tube

2.0/60.3/1500mm

Inner Tube

2.0/48.3/1500mm

Sleeve Pipe

OD 60.3×3.0×200mm.

Sleeve Nut

ID M60, Normal Nut 1nis with Handle

G-Pin (Lock Pin)

12mm Diameter

Inner Tube Hole

14mm Diameter

Painted Finish

Marine Blue.

Base Plate

120×120×5mm.

Weight

10.47kg.

Load Capacity (Full Open)

0.6ton.

Why ChooseNOVSA for Scaffolding Adjustable Prop Jacks?

    • Global supply capability (India, China, UAE & more)
    • Compliance with BS, EN, and IS standards
    • Hot-dip galvanized or painted finishes for long life
    • Bulk manufacturing with strict quality control
    • Fast delivery & reliable customer support

Order Scaffolding Adjustable Prop Jacks Today

Contact NOVSA today to get a competitive quote for your scaffolding needs. We are your one-stop source for adjustable prop jacks, scaffolding systems, and construction accessories, serving clients across India, UAE, China, and other global markets.
