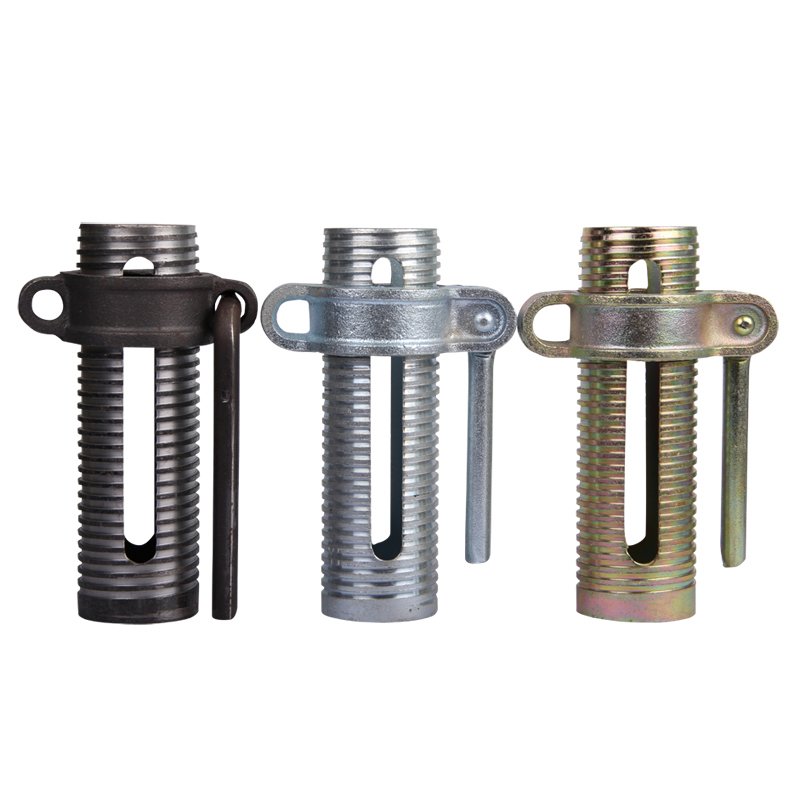

Prop Sleeve
Prop Sleeve – Size & Weight Chart
|
Tube Diameter (mm) |
Sleeve Length (mm) |
Thread Type |
Approx. Weight (kg/pc) |
|
48 mm (Standard) |
150 – 200 |
Square / Acme Thread |
1.2 – 1.8 |
|
60 mm (Medium Duty) |
200 – 250 |
Square / Acme Thread |
2.0 – 2.8 |
|
76 mm (Heavy Duty) |
250 – 300 |
Square / Acme Thread |
3.0 – 4.2 |
- Manufactured from Seamless / ERW Mild Steel Tubes.
- Custom lengths & thread designs available on request.
- Works in combination with Prop Nut & G Pin.
Surface Finish for NOVSA Prop Sleeve
|
Finish Type |
Description |
Advantage |
|
Electro-Galvanized (EG) |
Thin zinc coating applied through electroplating. |
Smooth finish, economical, suitable for general use. |
|
Hot-Dip Galvanized (HDG) |
Dipped in molten zinc for a thick protective coating. |
Smooth finish, economical, suitable for general use. |
|
Powder Coated / Painted |
Coated with durable paint or powder coating. |
Cost-effective, aesthetic, medium protection. |
|
Self-Colour (Black Steel) |
Supplied without coating in natural steel condition. |
Budget-friendly, suitable for short-term or indoor applications. |
Standards for Prop Sleeve
|
Standard |
Description |
|
BS 1139 |
British Standard covering scaffolding tubes, fittings, and adjustable components like sleeves. |
|
EN 74 |
European Standard for forged fittings, couplers, and threaded parts used in scaffolding systems. |
|
EN 12811 |
Specifies performance requirements and structural design for temporary works equipment. |
Grade for Prop Sleeve
|
Material Grade |
Standard |
Properties / Advantages |
|
Mild Steel (MS) – IS 2062 E250 |
Indian Standard |
High strength, good weld ability, economical. |
|
EN 8 / C45 (Medium Carbon Steel) |
EN Standard |
Better wear resistance, toughness, longer life. |
|
Seamless Steel (S235 / S275) |
EN Standard |
Uniform thickness, high load capacity, durable. |
