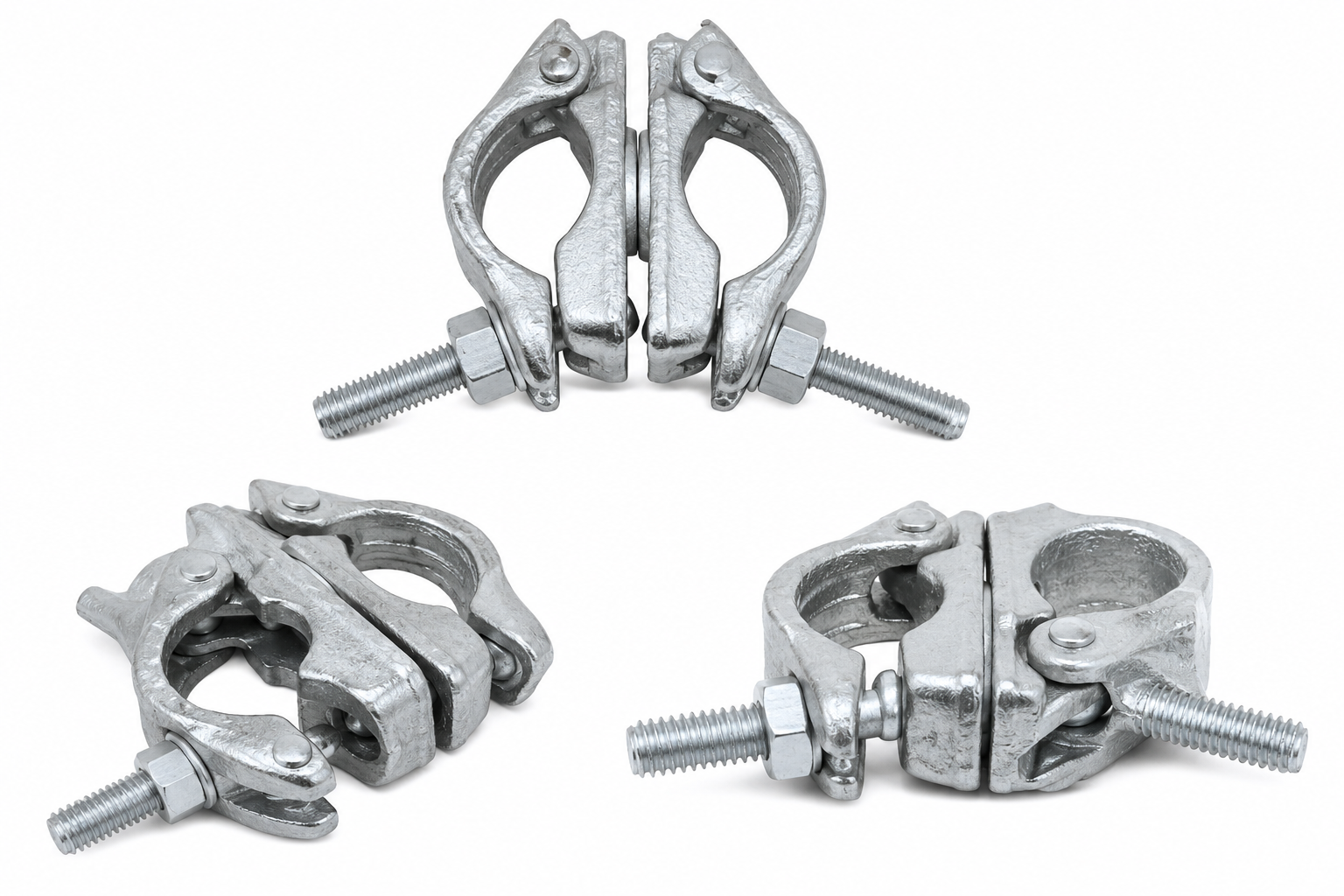

Swivel Clamp – Durable & Flexible Scaffold Coupler
Standard for Swivel Clamp
Our Swivel Clamps are designed for strong and flexible tube-to-tube connections at any angle, making them essential in complex scaffolding structures. Manufactured from high-strength forged steel with a corrosion-resistant finish, they ensure long-lasting performance even in heavy-duty applications.
These clamps strictly conform to BS 1139 and EN 74 international standards, guaranteeing safety, reliability, and compatibility for global construction requirements.
|
Feature |
Details |
|
Product Name |
Swivel Clamp |
|
Material |
High-Strength Forged Steel |
|
Finish |
Zinc-Plated / Hot-Dip Galvanized |
|
Standards |
BS 1139, EN 74 Compliant |
|
Usage |
Connects Two Scaffold Tubes at Any Angle |
|
Strength |
Heavy-Duty Load Bearing, Reliable for Complex Structures |
|
Applications |
Construction, Industrial Scaffolding, Infrastructure Projects |
Swivel Clamp – Surface Finish
To ensure long-lasting durability and corrosion resistance, our swivel clamps are available in multiple surface finishes. These finishes protect the clamps from rust, weather conditions, and heavy usage in construction projects.
|
Grade |
Description |
|
Mild Steel (MS) |
Standard grade for general scaffolding applications, offering good strength. |
|
Carbon Steel |
Higher tensile strength for heavy-duty load-bearing connections. |
|
Forged Steel |
Premium quality with excellent toughness and long-lasting durability. |
|
Surface Finish |
Zinc-Plated / Hot-Dip Galvanized for corrosion resistance. |
|
Tube Size (OD) |
Clamp Type |
Weight (Approx.) |
Standard |
|
48.3 mm |
Swivel Clamp |
Swivel Clamp |
BS 1139 / EN 74 |
|
48.3 mm × 48.3 mm |
Double Swivel Coupler |
1.65 – 1.80 kg |
1.65 – 1.80 kg |
|
60.3 mm (Optional) |
Heavy Duty Swivel Clamp |
1.80 – 2.00 kg |
Custom / EN 74 |
|
Finish Type |
Description |
Usage Advantage (Approx.) |
|
Electro-Galvanized (EG) |
Smooth zinc coating applied by electroplating. |
Cost-effective, good for general use. |
|
Hot-Dip Galvanized (HDG) |
Thick zinc coating by dipping in molten zinc. |
Superior corrosion resistance, outdoor use. |
|
Powder Coated / Painted |
Protective paint layer in different colours. |
Aesthetic finish, medium protection. |
|
Self-Colour (Black Steel)
|
Natural steel without additional finish.
|
Suitable for short-term / indoor projects.
|
