Tie Rod Scaffolding

A Tie Rod is a high-strength threaded rod used in formwork and scaffolding systems to hold and secure wall formwork panels together during concrete pouring. It resists the horizontal pressure of fresh concrete, ensuring the formwork remains stable and aligned. NOVSA manufactures Tie Rods with precision threading and superior material quality to provide maximum load-bearing capacity and long service life.

NOVSA Tie Rod – Size & Load Capacity Chart

Tie Rod Diameter

Thread Pitch

Load Capacity (kN)

Approx. Weight (kg/m)

Usage

15/17 mm

6.0 mm

90 – 110

1.45 – 1.60

Standard formwork walls & slabs

20 mm

6.0 – 8.0 mm

130 – 150

2.20 – 2.40

Heavy wall formwork & columns

22 mm

8.0 mm

160 – 180

2.60 – 2.80

Extra heavy wall formwork

26 mm

8.0 – 10.0 mm

200 – 220

3.20 – 3.50

High-rise building formwork, bridge & dam works

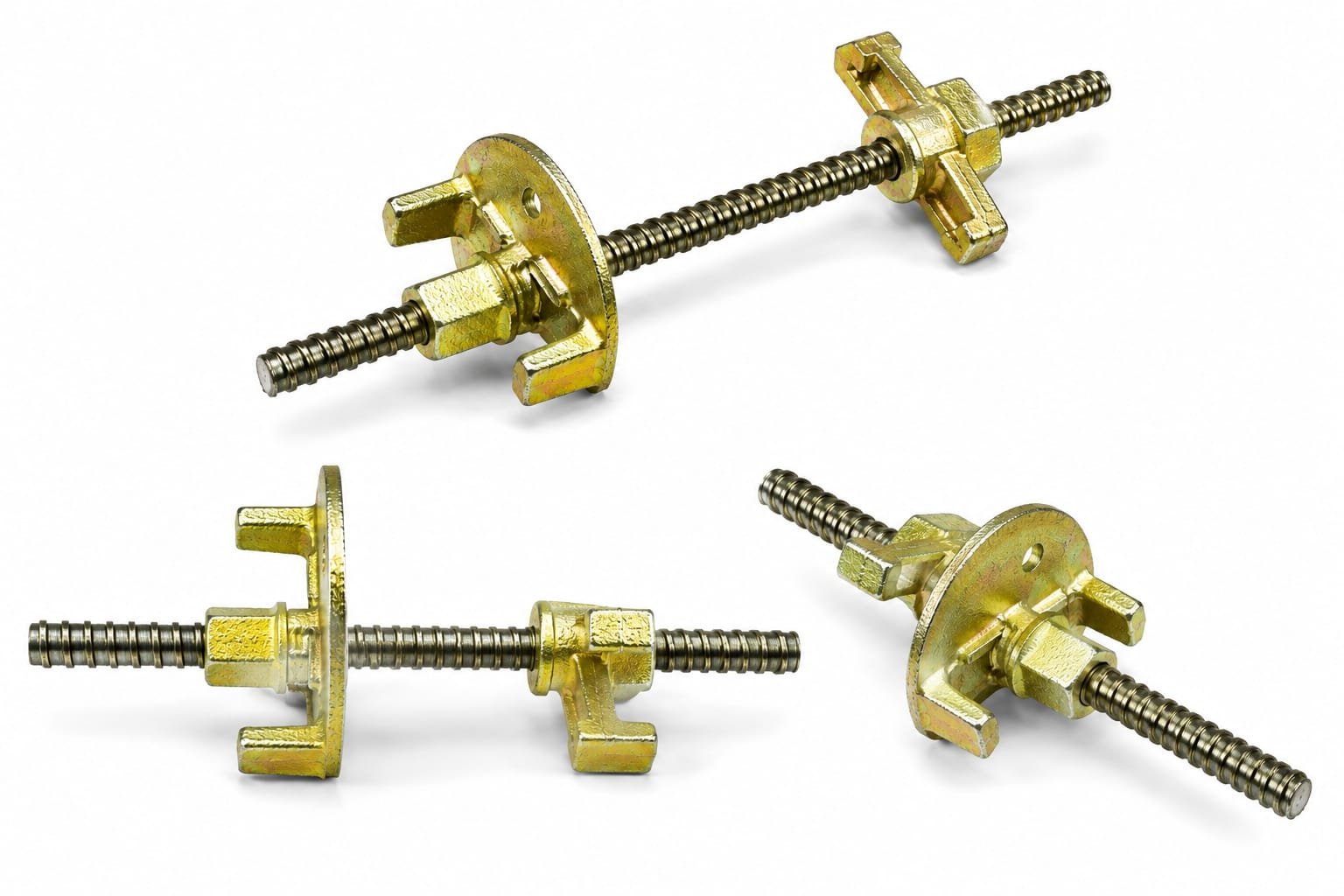

NOVSA Tie Rod

  • Manufactured from high-tensile steel with cold-rolled or hot-rolled threading.
  • Standard diameters: 15/17 mm, 20 mm, 26 mm (custom sizes available).
  • Thread type: Continuous rolled thread for easy assembly with wing nuts, anchor nuts, and water stoppers.
  • Load capacity: Up to 90–220 KN, depending on size.
  • Surface finish: Self-colour, Zinc plated, Galvanized, or Painted.
  • Compatible with Wing Nut, Anchor Nut, Waller Plate, Water Stopper.

Surface finish for NOVSA Tie Rod

Surface Finish

Description

Application Advantages

Self-Colour (Black)

Uncoated natural steel finish.
Cost-effective, suitable for short-term projects.

Painted / Powder Coated

Protective paint coating applied for basic corrosion resistance.
Indoor or less humid environments.

Electro-Galvanized

Thin zinc coating applied via electroplating.
Corrosion protection for medium-term usage..

Hot-Dip Galvanized

Thick zinc coating applied by dipping in molten zinc.
Superior corrosion resistance, ideal for outdoor & long-term projects.

Zinc Plated

Shiny zinc finish with medium corrosion resistance.
Reusable formwork applications.

Standard for NOVSA Tie Rod

Standard

Description

DIN 18216

German Standard for formwork accessories including tie rods, nuts, and anchors..
EN 1065
European Standard for load-bearing scaffolding and props, covering tie rod performance.
BS 1139
BS 1139 British Standard for scaffolding and fittings ensuring strength & safety.
EN ISO 898-1
EN ISO 898-1 Mechanical properties of fasteners made of carbon steel and alloy steel.
IS 1367 / IS 1363
Indian Standards for threaded rods, bolts, and nuts covering dimensions & properties.
ASTM A615 / A722
American Standards for threaded steel rods used in construction and formwork.

Material Grade for NOVSA Tie Rod

Material Grade

Standard Equivalent

Tensile Strength

Application

High Tensile Steel – SAE 1018 / 1020

Mild Carbon Steel (DIN C15 / C20)

370 – 450 MPa

Standard formwork tie rods for walls & slabs.

EN 8 / C45 (Medium Carbon Steel)

DIN C45 / AISI 1045

600 – 800 MPa

Heavy-duty tie rods with higher strength.

EN 8D / EN 19 (Alloy Steel)

AISI 4140 equivalent

800 – 1000 MPa

High-rise, bridge, and dam construction.

Q235 / Q345 (Chinese Std.)

Equivalent to ASTM A36 / A572

375 – 650 MPa

General-purpose scaffolding & formwork.
