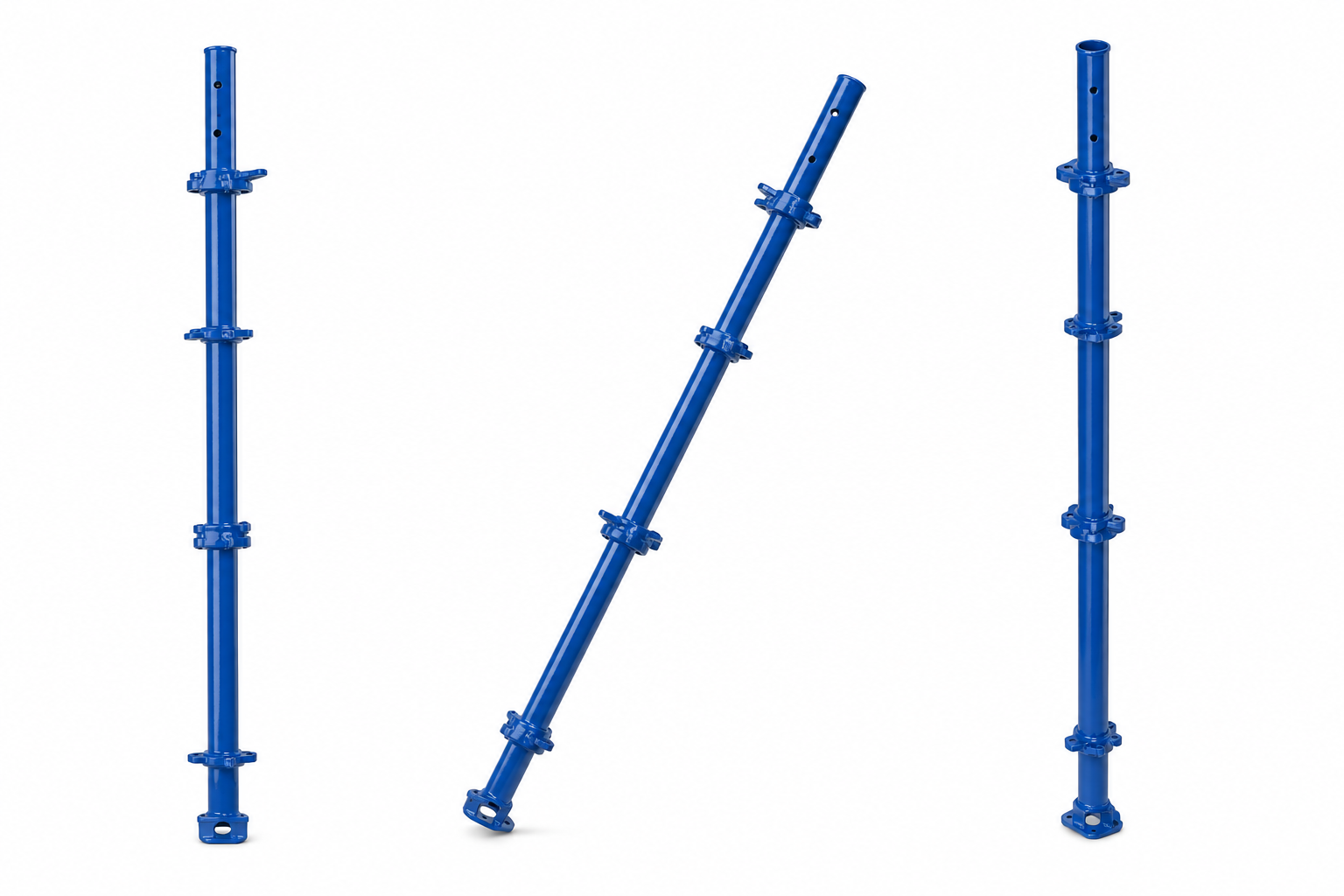

Vertical Ledger – Strong & Reliable Scaffolding

NOVSA we manufacture Vertical Ledgers that provide rigid vertical support in Cup Lock and Ring Lock scaffolding systems. Our ledgers are equipped with precision-forged ledger blades at both ends, ensuring secure locking, fast installation, and maximum load-bearing capacity without the need for bolts or loose fittings. NOVSA Vertical Ledgers, construction projects benefit from quick erection, enhanced stability, and long-term reliability, making them a trusted choice for scaffolding contractors worldwide.

Vertical Ledger – Size & Weight Chart

Length (m)

Tube Size (OD × Thickness)

Approx. Weight (kg)

0.60 m

Ø 48.3 mm × 2.5 / 3.2 mm

2.6 – 3.0 kg

0.90 m

Ø 48.3 mm × 2.5 / 3.2 mm

3.4 – 3.9 kg

1.20 m

Ø 48.3 mm × 2.5 / 3.2 mm

4.2 – 4.8 kg

1.50 m

Ø 48.3 mm × 2.5 / 3.2 mm

5.2 – 5.9 kg

1.80 m

Ø 48.3 mm × 2.5 / 3.2 mm

6.1 – 7.0 kg

2.00 m

Ø 48.3 mm × 2.5 / 3.2 mm

6.7 – 7.6 kg

2.50 m

Ø 48.3 mm × 2.5 / 3.2 mm

8.4 – 9.6 kg

Surface finish for NOVSA Vertical Ledger

Finish Type

Description

Advantages

Hot-Dip Galvanized (HDG)

Thick zinc coating by dipping in molten zinc.
Superior corrosion resistance, ideal for outdoor & long-term projects.

Electro-Galvanized (EG)

Thin zinc layer applied by electroplating.
Smooth finish, cost-effective, suitable for indoor or short-term use.

Powder Coated / Painted

Protective paint coating in various colours..
Medium corrosion resistance, aesthetic appeal, economical choice.

Self-Colour (Black Steel)

Natural steel finish without additional coating.
Budget-friendly, used in temporary works.
NOVSA Vertical Ledgers are manufactured in compliance with BS 1139 & EN 12810/12811 standards, ensuring strength, safety, and durability.

Material Grade for Vertical Ledger

Grade

Description

Mild Steel (MS)

Standard grade steel, economical and reliable for general scaffolding use.
Carbon Steel
Provides higher tensile strength, toughness, and resistance for heavy-duty use.
Forged Steel (Blades)
Precision-forged steel ledger blades ensure strong locking, safety, and long service life.

Standards for Vertical Ledger

All NOVSA Vertical Ledgers are manufactured and tested in accordance with international scaffolding standards, ensuring strength, safety, and global compatibility in construction projects

Standard

Description

BS 1139

British Standard for scaffolding tubes, fittings & components, ensuring quality and safety.
EN 12810
European standard for façade scaffolds made from prefabricated components.
EN 12811
Specifies performance requirements and structural design for scaffolding systems.
EN 74
Standard covering forged scaffold fittings and couplers used with ledgers.
